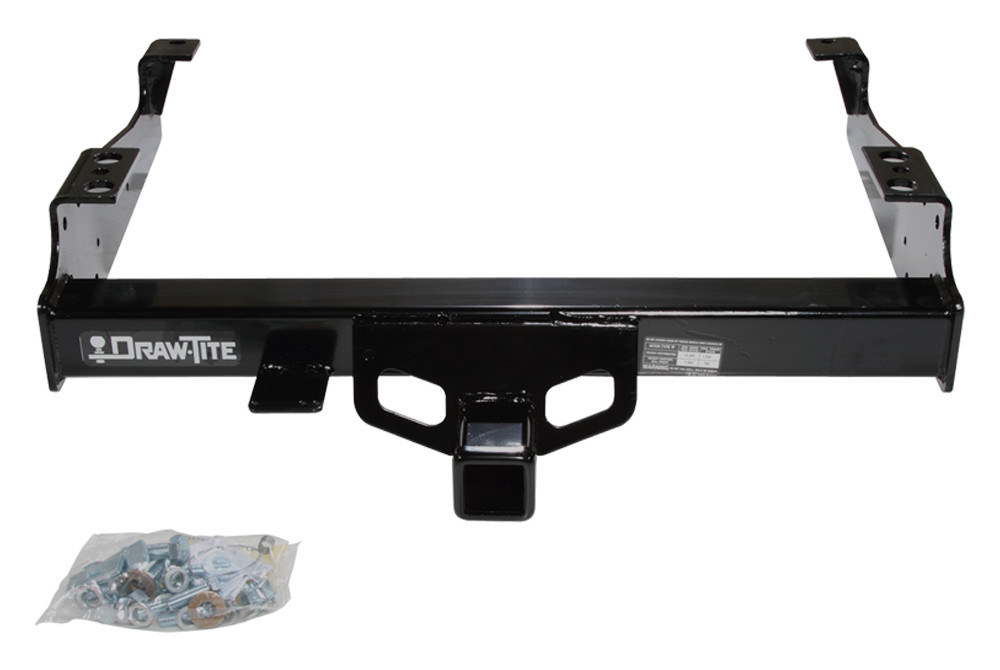

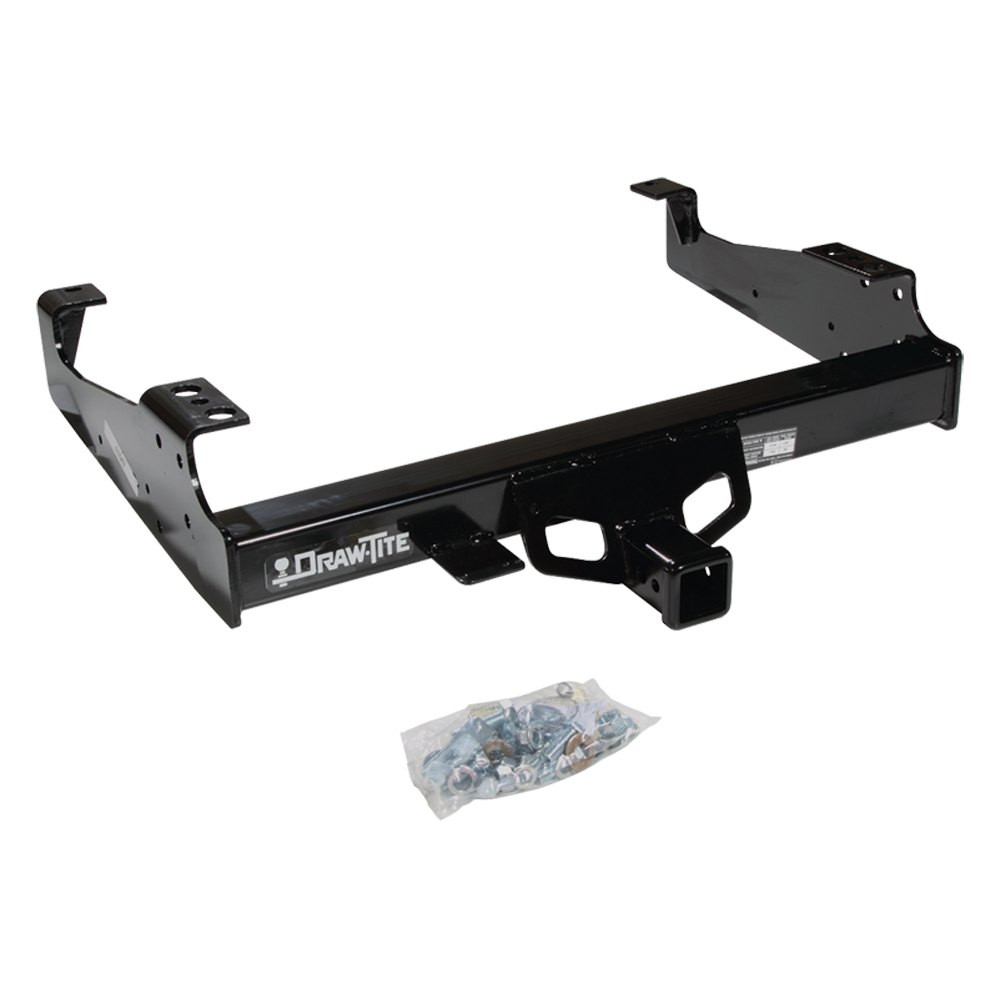

Draw-Tite® 41547 - Class 4 Max-E-Loader Trailer Hitch with 2" Receiver Opening (7500/750 Weight Capacity)

124 reviews|Item # mpn1917766
Authorized Dealer
$296.80
OUT OF STOCK - Unavailable until further notice
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

Ford

Specifications

Name
Trailer Hitch
Class
Class 4
Receiver Size
2"
Maximum Gross Trailer Weight (MGTW)
7500 lb
Maximum Tongue Weight (MTW)
750 lb
Ball Mount Included
No
Color
Black
Hitch Location
Rear
Warranty
Limited Lifetime Warranty

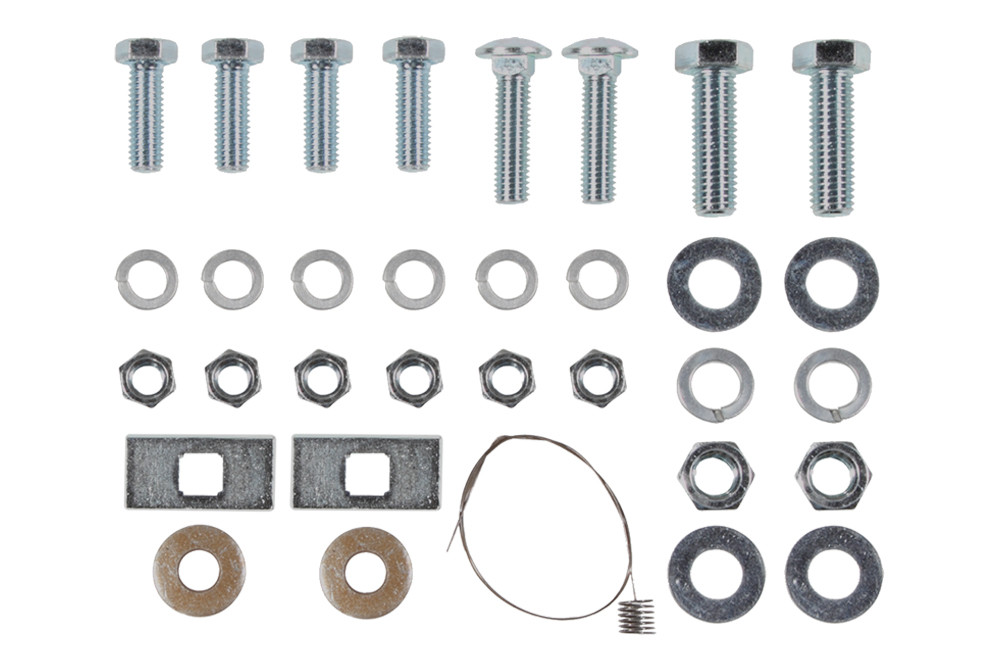

Mounting Hardware Included
Yes

Features

  • 2" Square Receiver Tube Opening
  • Max-E-Loader receivers are designed for trucks, vans and sport utility vehicles
  • The longer side bracket design distributes the towing load over a greater portion of the tow vehicle frame
  • Neat Appearance, All Frame Attachments
  • A-Coat Base with Black Powder Coat Finish
  • Solid All-Welded Construction for Maximum Strength and Safety
  • Custom Built According to Manufacturer and Model Year
  • Ensures Perfect Fit and Top Towing Performance
  • Computer-Aided Design and Fatigue Stress Testing
  • Designed to Withstand Road Abuse Within Specified Capacities
  • Backed by a Nationwide Limited Lifetime Warranty

Product Details

Class 4 Max-E-Loader Rear Trailer Hitch (41547) by Draw-Tite®. Limited Lifetime Warranty. The Weight Carrying Capacity is 7500 lbs, while the Tongue Weight is 750 lbs, 12000/1200 lbs Weight Capacity with use of Weight Distribution System, and the Receiver Tube Opening Size is 2". A sturdy hitch from Draw-Tite is engineered and built from the ground up to fit your vehicle perfectly, and allows you to tow safely and easily.

Installation

Trailering puts a strain on your towing vehicle. And it can put a real strain on your nerves if you're not set up right. You need a properly-engineered hitch with the appropriate rating for the weight of your fully-laden trailer. If your trailer is big enough, add in a trailer brake controller and the wiring to it, and perhaps a weight-distributing hitch. All that gear needs to be installed and rigged by someone knowledgeable in trailering. Draw-Tite has a hitch receiver for your vehicle that will allow you to tow the maximum amount permitted by the vehicle manufacturer safely. They also have hitch balls and ball mounts for every class of towing, and a full catalog of other gear that will make your trailering as safe and as easy as possible.

Brand:
Part Number:
41547
UPC:
742512415476

Reviews

(124)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
/5
1-10 of 124 Reviews
4 of 5
Fit...Not Perfect but It Works
You have to cut the excesses on each side of the hitch, otherwise it rubs the muffler pipes. Then, the spare tire must be deflated to 50% so that it will fit back into place. This work must be done by a professional.
Posted by Horacio (San Juan, PR) / July 01, 20212020 Acura RDX
5 of 5
Very Nice Trailer Hitch
Finally got around to installing it. It looks great on my Colorado. I chose this one as the weight capacity is greater than the Colorado is ratted for, I'm a big believer in a little stronger is always the way to go. My 1/2 inch pneumatic impact gun picked this job to break, so I used hand tools. Have a big breaker bar as Chevy uses a thread locker and they fight you. (buying a new 1/2 impact today). I used my ramps and backed my Colorado just part way up to increase my working room and then varied my height as needed. (do not forget to chalk the wheels) The two vertical side plates are custom-made for the frame so it's important to have an assistant to help slide it into place as trying to do it by myself was impossible, as if it's just a little cocked it's a no-go. We even lubricated the plates and frame beams to help. But, that said there is nothing wrong with a nice tight fit.
Posted by Michael (Arvada, CO) / April 13, 20212018 Chevy Colorado
5 of 5
Easy Peazy Installation
No cutting or drilling. Hardest part was holding the hitch up (on my back) while trying to install the washers and nuts.
Draw-Tite® 24910 - Class 1 Sportframe Trailer Hitch with 1-1/4" Receiver Opening (W/O Drawbar, 2000/200 Weight Capacity)
Posted by Ronald (Sebastian, FL) / October 07, 20202017 Ford Fiesta
4 of 5
Great Product
Fast shipping. Easy to follow instructions. A grinder definitely makes installation easier.
Draw-Tite® 76144 - Class 3 Max-Frame™ Round Trailer Hitch with 2" Receiver Opening (4500/675 Weight Capacity)
Posted by Customer / September 20, 20202020 Jeep Compass
4 of 5
Almost Perfect
Installed on a 2013 Nissan Rogue. The second hole from the rear on the driver's side is slightly offset on the hitch. I believe this may be a manufacturing defect. I was still able to install the hitch, but the offset of the second hole meant I couldn't put in the third bolt (frontmost) because the hole in the hitch was now misaligned. I tried to angle it every way before fully tightening any bolts, but it would not align correctly. I was still able to install the two rearmost bolts on each side, creating a secure connection between the vehicle and the hitch.
Posted by Customer / August 27, 20202013 Nissan Rogue
5 of 5
Perfect Fit
It bolted right up and fit perfectly.
Draw-Tite® 76275 - Class 3 Max-Frame™ Square Trailer Hitch with 2" Receiver Opening (7000/1125 Weight Capacity)
Posted by Customer / July 14, 20202020 Ford Ranger
3 of 5
Misleading Description
The hitch is good quality, and installs fairly easily, but there is no way to do it in 15 min. The installation instructions say 90 min for a professional shop. I am a mechanic, and it took me about 2.5 hrs ( I did have a 3-year-old helper). Just plan for the time. You will need a saw for cutting the bumper cover as well as sockets and wrenches.
Draw-Tite® - Class 3 Trailer Hitch with 2" Receiver Opening
Posted by M shaun (Mount Vernon, WA) / July 04, 20202016 Honda Odyssey
5 of 5
Good Fit
This trailer hitch was easy to install in my car and it works just perfectly.
Draw-Tite® 24882 - Class 1 Sportframe Trailer Hitch with 1-1/4" Receiver Opening (W/O Drawbar, 2000/200 Weight Capacity)
Posted by Juan (Midvale, UT) / March 07, 20202014 Chevy Cruze
5 of 5
Posted by Juan Antonio (Panama City Beach, FL) / October 13, 20192016 Nissan Rogue
5 of 5
Ease of Install and Perfect Fit
I just received and installed this hitch on my 2019 Acura RDX. I had read some installation guides that referred to lowering the muffler. I did not find that necessary and was able to tilt and guide the hitch around the rear of the two mufflers. I did need to pry the one muffler to the side by about 1/4" but the hitch slid right into place. Very important to use a torque wrench since the specified torque requires a pretty hefty force and I would never have thought to tighten it so much if I had used a standard non-torque socket wrench. The hitch looks good and sturdy. I'll be testing it later when my bike rack arrives. TRUCKiD had best price and very fast shipping. Very happy with the company and the product.
Posted by Douglas (Atlantis, FL) / October 03, 20192019 Acura RDX
