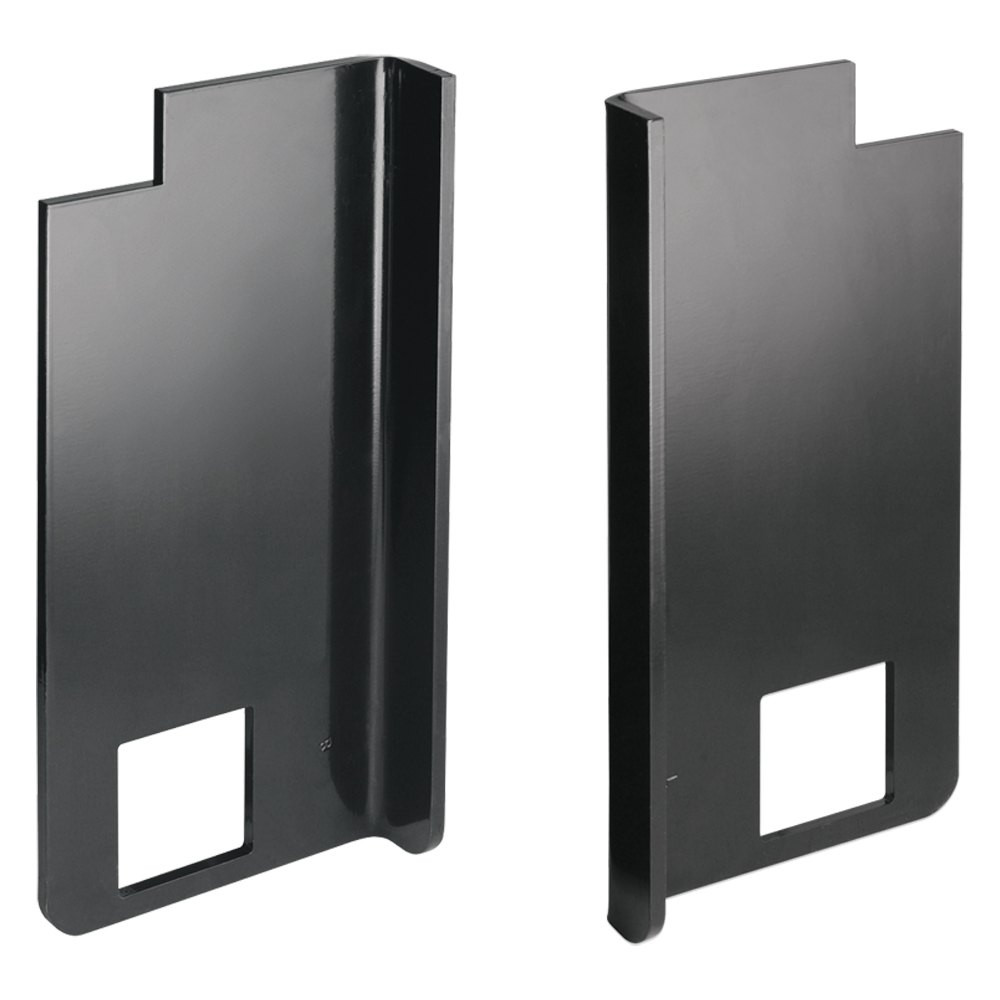

Draw-Tite® 4916 - Side Bracket Kit

You have to cut the excesses on each side of the hitch, otherwise it rubs the muffler pipes. Then, the spare tire must be deflated to 50% so that it will fit back into place. This work must be done by a professional.

Finally got around to installing it. It looks great on my Colorado. I chose this one as the weight capacity is greater than the Colorado is ratted for, I'm a big believer in a little stronger is always the way to go. My 1/2 inch pneumatic impact gun picked this job to break, so I used hand tools. Have a big breaker bar as Chevy uses a thread locker and they fight you. (buying a new 1/2 impact today). I used my ramps and backed my Colorado just part way up to increase my working room and then varied my height as needed. (do not forget to chalk the wheels) The two vertical side plates are custom-made for the frame so it's important to have an assistant to help slide it into place as trying to do it by myself was impossible, as if it's just a little cocked it's a no-go. We even lubricated the plates and frame beams to help. But, that said there is nothing wrong with a nice tight fit.

No cutting or drilling. Hardest part was holding the hitch up (on my back) while trying to install the washers and nuts.

Fast shipping. Easy to follow instructions. A grinder definitely makes installation easier.

Installed on a 2013 Nissan Rogue. The second hole from the rear on the driver's side is slightly offset on the hitch. I believe this may be a manufacturing defect. I was still able to install the hitch, but the offset of the second hole meant I couldn't put in the third bolt (frontmost) because the hole in the hitch was now misaligned. I tried to angle it every way before fully tightening any bolts, but it would not align correctly. I was still able to install the two rearmost bolts on each side, creating a secure connection between the vehicle and the hitch.

It bolted right up and fit perfectly.

The hitch is good quality, and installs fairly easily, but there is no way to do it in 15 min. The installation instructions say 90 min for a professional shop. I am a mechanic, and it took me about 2.5 hrs ( I did have a 3-year-old helper). Just plan for the time. You will need a saw for cutting the bumper cover as well as sockets and wrenches.

This trailer hitch was easy to install in my car and it works just perfectly.

Fit very well to Rogue 2016.

I just received and installed this hitch on my 2019 Acura RDX. I had read some installation guides that referred to lowering the muffler. I did not find that necessary and was able to tilt and guide the hitch around the rear of the two mufflers. I did need to pry the one muffler to the side by about 1/4" but the hitch slid right into place. Very important to use a torque wrench since the specified torque requires a pretty hefty force and I would never have thought to tighten it so much if I had used a standard non-torque socket wrench. The hitch looks good and sturdy. I'll be testing it later when my bike rack arrives. TRUCKiD had best price and very fast shipping. Very happy with the company and the product.
