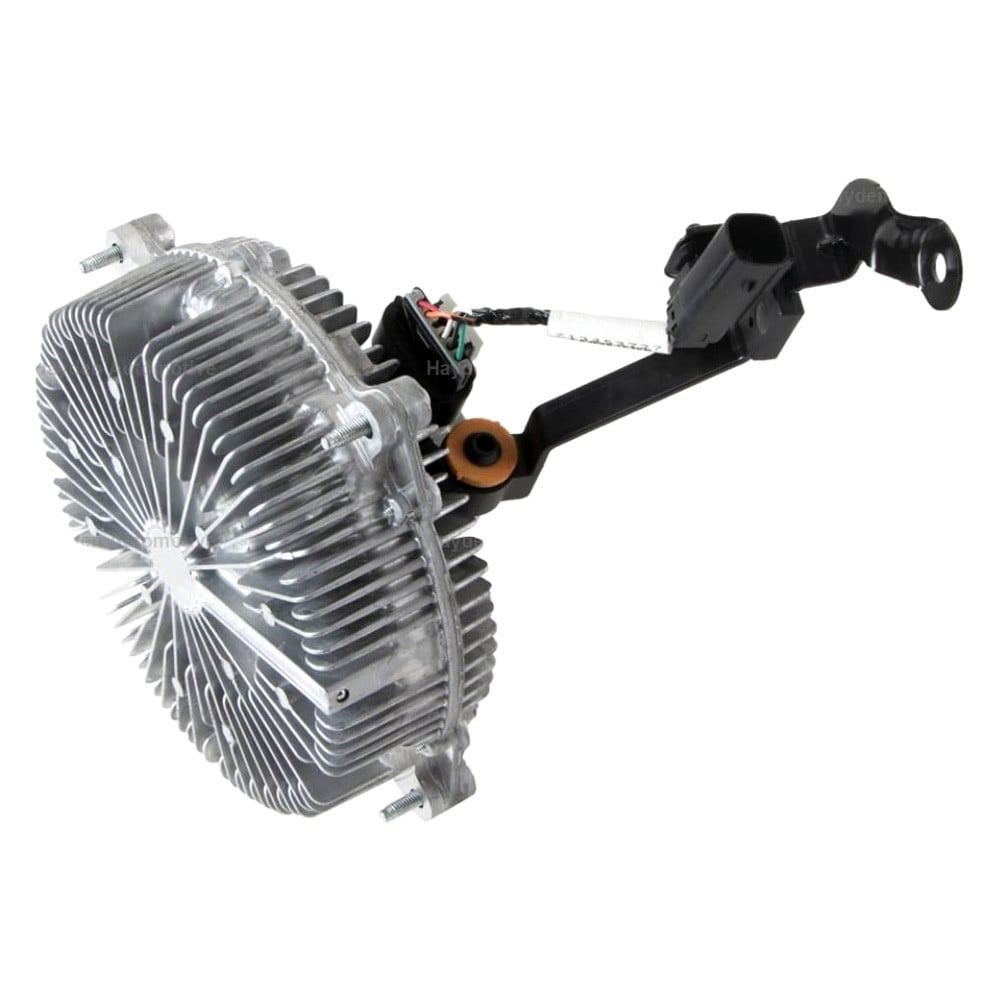

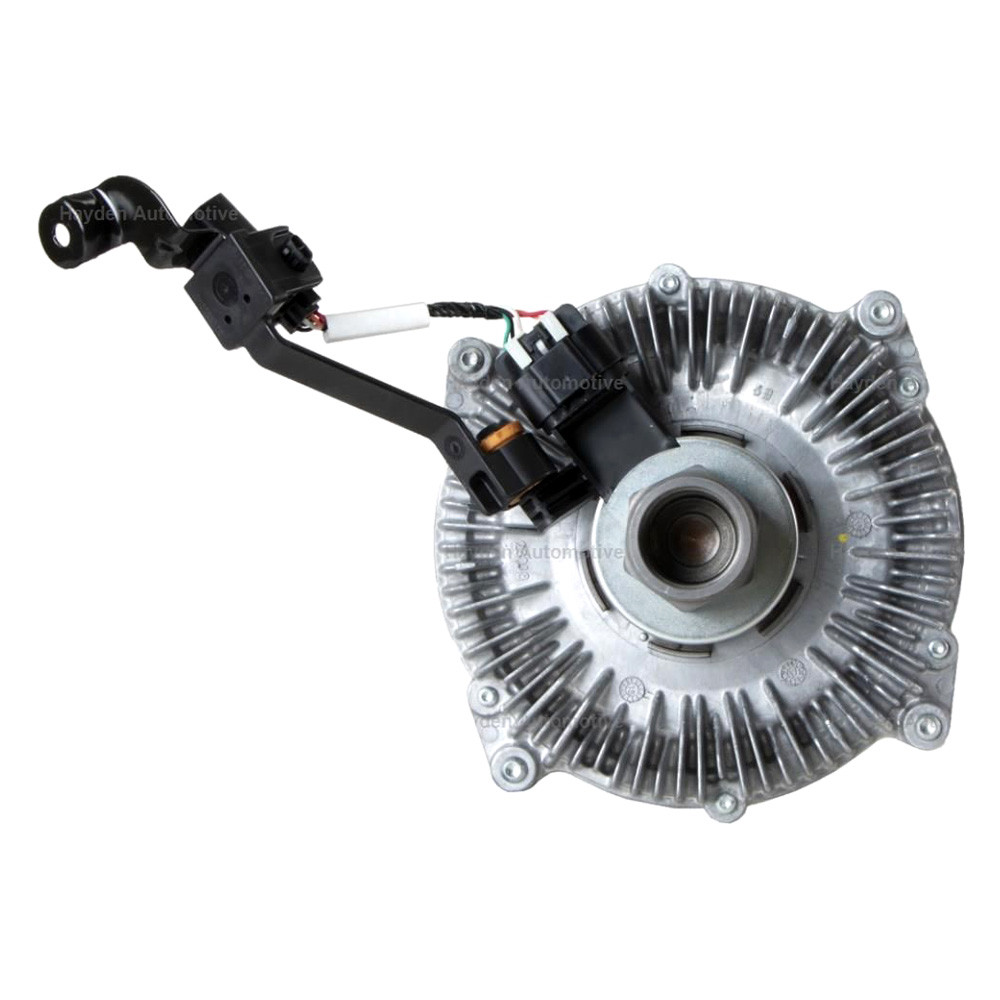

Name: Hayden® 3240 - Severe Duty Electronic Engine Cooling Fan Clutch
Brand: Hayden
SKU: mpn4733042430
Price: 435.55 USD
Availability: InStock
Rating: 5 (2 reviews)

Vehicle Fitment

Ford

Specifications

Color	Raw Aluminum in Color
Bolt Hole Quantity	4

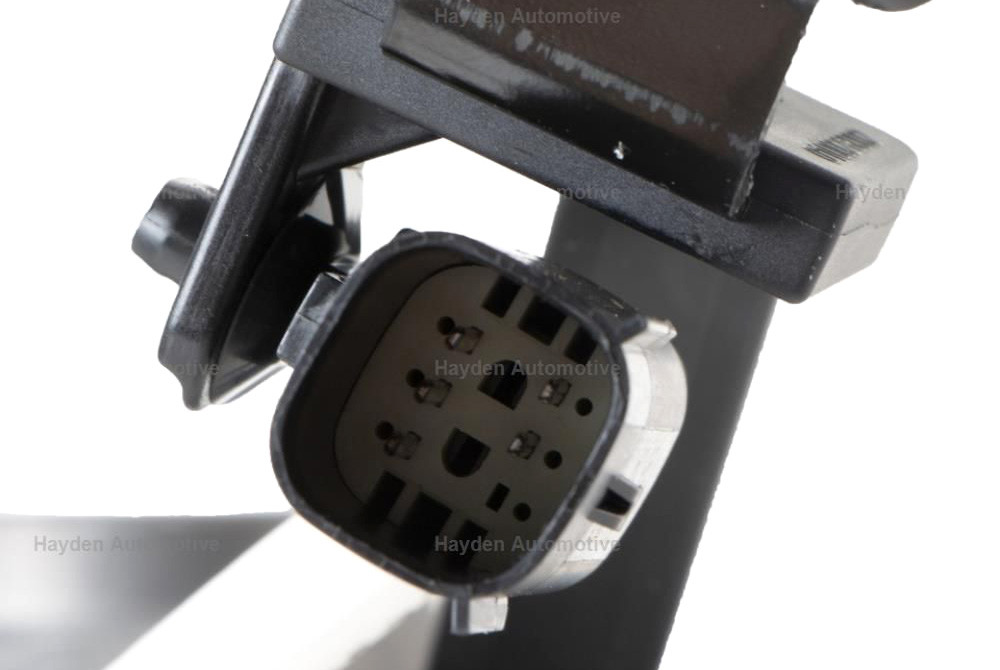

Terminal Type	Male
Grade Type	Severe Duty
Mounting Hole Quantity	4
Thermal Or Centrifugal	Electronic
Clutch Maximum Diameter	6.0 in
Bolt Quantity	4
Clutch Type	Electronic
Description	Fan Clutches
Dia. IN	6.0 in
Duty Rating	Severe Duty
Fan Bolt Circle IN	8.66 in
Meets / Exceeds OEM?	Yes
Mount Hole Qty	4
Overall Dia. IN	7.08 in
Overall Dia. MM	179.8 mm
Overall Height IN	5 in
Overall Height MM	127 mm
Performance Rated?	Yes
Style	Severe Duty
Type	Electronic

Features

Controls the level of engagement depending on any number of inputs
Made of premium materials to ensure durability and reliable performance
Provides OEM fit

Product Details

Severe Duty Electronic Engine Cooling Fan Clutch (3240) by Hayden®. Rotation: Reverse. Hayden Automotive engineers, manufactures and supplies a wide range of products designed to keep your car, truck or performance vehicle running cool. From fan clutches and electric fans to performance oil and transmission coolers, we’ve got what you need to protect your vehicle from damaging and performance robbing heat. Hayden Automotive - products engineered and built to take the heat, so your vehicle won’t.

Installation

The ECM/PCM signal controls the level of engagement of an electronic-viscous fan clutch. When the solenoid in the fan clutch is energized, it opens a spring loaded valve and allows silicone drive fluid to flow from the storage reservoir to the working area of the unit, increasing fan speed. When the solenoid is de-energized, the valve closes and blocks the path of the fluid to the working area, reducing fan speed. The engagement process is controlled through the ECM/PCM by the input variables such as coolant temperature, transmission oil temperature, intake manifold temperature, A/C pressure, and engine oil temperature. If your fan spins excessively when the engine is stopped, the A/C performance is poor at idle or low vehicle speeds, or you feel vibration that increases with the engine speed, these are the signs of the failed fan clutch. Don't put your vehicle at risk and opt for a premium replacement fan clutch by Hayden.

Hayden® - Fan Clutches How They Work Hayden® - Perfortmance Cooling Products Catalog Hayden® - Products Features Hayden® - Fan Clutches Comparison Hayden® - Fan Clutch Installation Instructions Hayden Authorized Dealer FAQ Warranty About us

Brand:

Hayden

Part Number:

3240

UPC:

036752032402

Warranty

Hayden Automotive warrants for:

Fan Clutches (Thermal and Electronic)
Fan Clutches (Non-Thermal)
Electric Fans (120-day warranty), Radiator Fan Motors and Accessories
Pulleys, Idlers and Tensioners
Semi-Flex Fan

to be free from defects in materials or workmanship for a period of 12 months or 12,000 miles. The warranty period begins on the date the product is delivered.

Hayden Automotive warrants for:

Standard and Heavy Duty Flex Fans
Fan Clutch Fan
Transmission and Engine Oil Coolers

to be free from defects in materials or workmanship for a period of 24 months or 24,000 miles. The warranty period begins on the date the product is delivered.

The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.

During the warranty period, Hayden Automotive will repair or replace, at no charge, a product that is defective in materials or workmanship. Hayden Automotive reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
