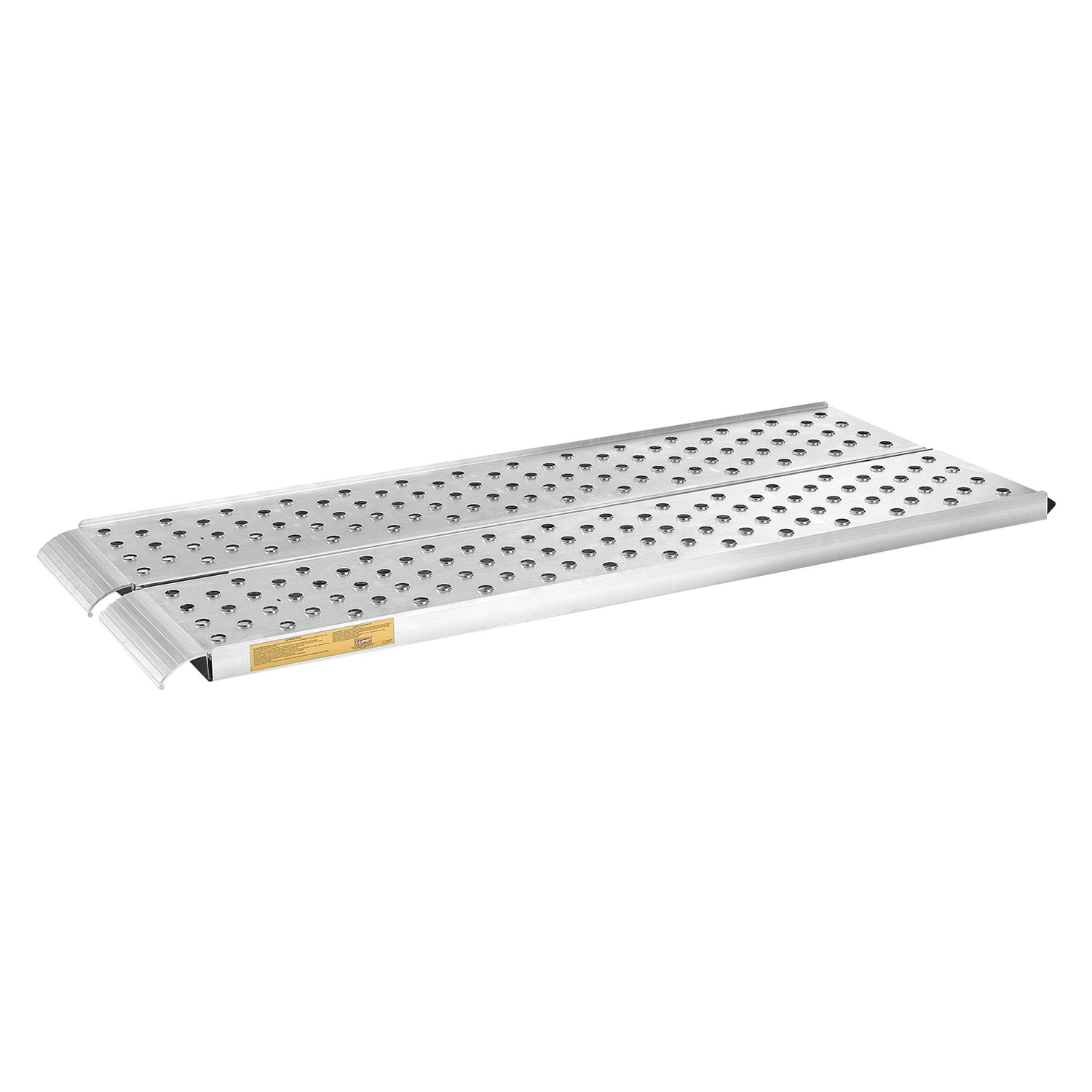

Name: Lund® 602003 - Straight Bi-Fold Loading Ramp
Brand: Lund
SKU: mpn933628
Price: 266.51 USD
Availability: OutOfStock
Rating: 4 (1 reviews)

Vehicle Fitment

This part is universal

Specifications

Type	Bi-Fold Ramps
Material	Aluminum
Color	Aluminum
Finish	Chrome / Polished
Load Capacity	1500 lb
Product Dimensions	69"L" x 30"W" x 15"H
Item Weight	28 Pounds
Special Features	Foldable
Warranty	Limited Lifetime Warranty
Country of Origin	US

Features

The extruded hole surface of Bi-Fold Loading Ramps guarantees easy loading, providing traction even for the muddiest of all-terrain tires
Bi-Fold Loading Ramps can fold to 15" width and can be taken apart for storage
Manufactured from rust-resistant lightweight aluminum, Bi-Fold Loading Ramps feature long service life
Safety is ensured by the nylon straps that secure the ramps to the vehicle.
Proudly made in the USA
Limited Lifetime Warranty

Product Details

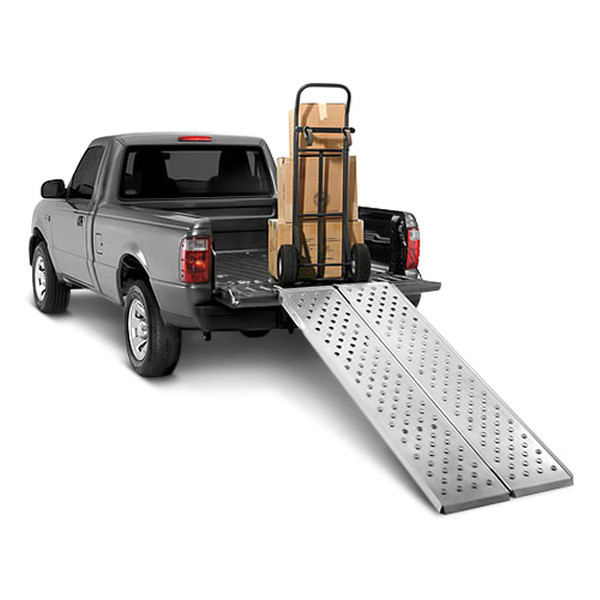

Universal Straight Bi-Fold Loading Ramp (602003) by Lund®. 1 Piece. Dimensions: 69" Length x 15" Width. Finish: Bright. Material: Aluminum. Load capacity: 1500 lb. Need help getting heavy vehicles into your pickup but don’t want to deal with long and cumbersome loading ramps? These Bi-Fold Ramps from Lund are the solution. Their traction aiding surfaces and raised edge wheel guides will make loading dirt bikes, ATVs and lawn tractors a simple task, while the folding design and convenient carrying handle enable convenient storage. The load capacity of each aluminum panel is up to 750 lbs. The ramp is 30" wide, and it can fold to 15" width for easy storage and transportation.

Installation

Lund® - Straight Bi-Fold Loading Ramp Installation Instructions

Lund Loading Ramps can really facilitate when loading dirty bikes, ATVs or other massive cargo into the truck bed due to their high distributed-load capacity per ramp section. The extruded-hole surface gives traction even for the muddiest of the all-terrain tires. Manufactured in the USA, these rough and strong Lund Loading Ramps have a light-weight aluminum construction, which is distinguished by rust-resistance and long service life. Concerned about safety, Lund fitted its loading ramps with the rubberized tailgate protector to prevent damage to the tailgate finish. Presenting innovative folding design, Lund offers convenient storage and transportation of the product.

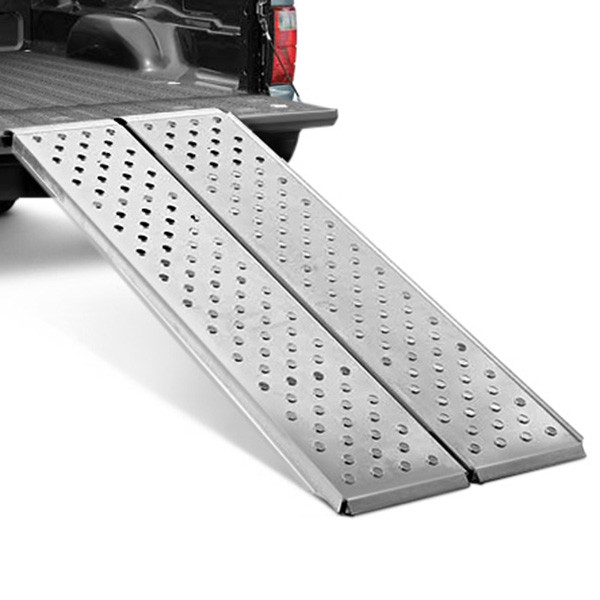

The straight loading ramp has extruded holes on the surface of the ramp for optimal tire traction and raised edges to make sure the wheels stay on track right into the bed. The arched ramp has a cleated surface for traction as well as a raised edge design, but also features a low approach angle to make initial loading easier. The arched design creates gentler transition angles to keep low ground clearance vehicles like tractors with the mower deck attached from getting snagged on the ramps.

Bi-Fold Loading Ramps covered by a limited 3-year warranty against defects in materials and workmanship. The warranty applies to the original purchaser for 3-years from date of purchase as long as he or she owns the vehicle on which the product is installed.

Lund® - Straight Bi-Fold Loading Ramp Installation Instructions Lund® - Warranty Lund® - Catalogs Made In USA Lund Authorized Dealer

Brand:

Lund

Part Number:

602003

UPC:

025067033747

Warranty

Limited Lifetime Warranty

What Is Covered: All defects in materials or workmanship except paint and painting on all Lund International, Inc.'s Lund International, AVS®, Lund®, Nifty® and Deflecta-Shield® Accessories branded products properly installed per provided instructions except those listed below under the One-Year Warranty, Two-Year Warranty or Three-Year Warranty. This warranty does not apply to any product from Lund International's direct or indirect subsidiaries.

For How Long: This warranty and any implied warranties, including merchantability and fitness for a particular purpose, last as long as the original retail purchaser owns the vehicle on which the product is installed. The warranty expires if the product is removed from the original vehicle or if the original vehicle is transferred to another owner. The warranty is not transferable from the original purchaser.

Limited One-Year Warranty

What Is Covered: All defects in materials or workmanship on all Pro-Line® branded replacement carpets - Challenger™, Ultima™ and Contender™ branded storage boxes - All Cargo Management products except the Folding Aluminum Ramp, Folding Aluminum Arched Ramp, Bi-Fold Ramps and Tri-Fold Ramps properly installed per provided instructions.

For How Long: This warranty and any implied warranties, including merchantability and fitness for a particular purpose, last one year from the date of purchase. The warranty expires if the product is removed from the original vehicle or if the original vehicle is transferred to another owner. The warranty is not transferable from the original purchaser.

Limited Two-Year Warranty

What Is Covered: All defects in materials or workmanship except paint, painting or powder coating on Seal-Tite™ branded storage boxes properly installed per provided instructions.

For How Long: This warranty and any implied warranties, including merchantability and fitness for a particular purpose, last two years from the date of purchase. The warranty expires if the product is removed from the original vehicle or if the original vehicle is transferred to another owner. The warranty is not transferable from the original purchaser.

Limited Three-Year Warranty

What Is Covered: All defects in materials or workmanship except paint and painting on the Stainless Interceptor™, Folding Aluminum Ramp, Folding Aluminum Arched Ramp, Bi-Fold Ramps and Tri-Fold Ramps properly installed per provided instructions.

For How Long: This warranty and any implied warranties, including merchantability and fitness for a particular purpose, last three years from the date of purchase. The warranty expires if the product is removed from the original vehicle or if the original vehicle is transferred to another owner. The warranty is not transferable from the original purchaser.

What Lund International Will Do: During the applicable warranty period listed above, Lund International will, at its option replace any defective product at no charge. You must pay any labor charges associated with removing or reinstalling the product. If a specific product has been discontinued, Lund International may, at its option, replace your product with a current product of comparable function and value.

What These Warranties Will Not Cover: These warranties do not cover any damage, defect, or malfunction caused by misuse, abuse, accident, improper installation, modification, improper or inadequate maintenance, or on-road and off-road hazards. Incidental and consequential damages are not recoverable under this warranty. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you.

How Does State Law Apply? This warranty gives you specific legal rights, and you may have other rights which vary from state to state or province to province. This warranty statement supersedes all previous warranty statements in AVS®, Lund®, Nifty® and/or Deflecta-Shield® Accessories catalogs or other marketing materials.
