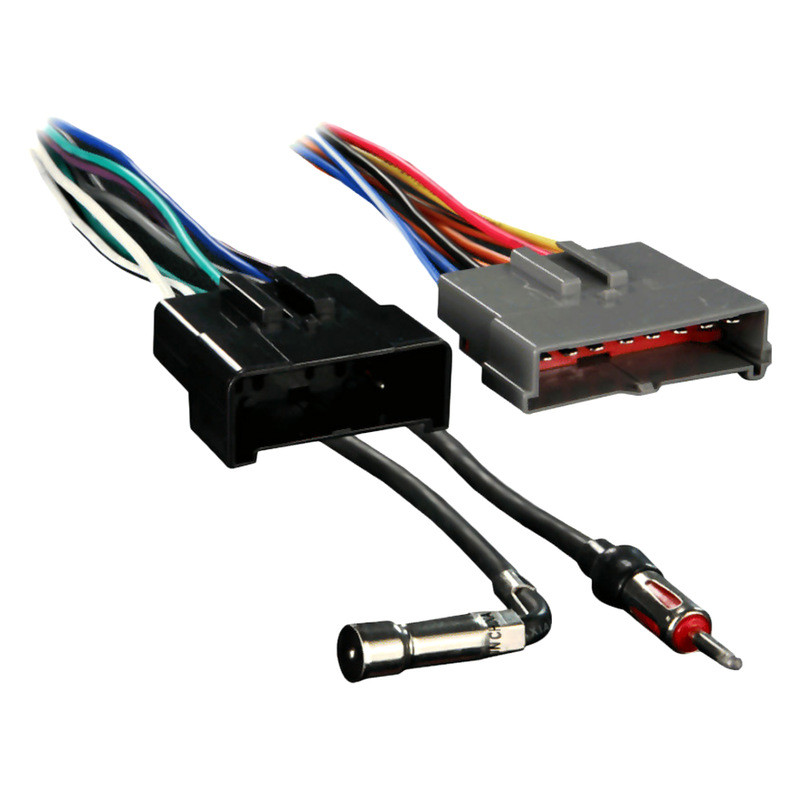

Metra® 70-5601 - Aftermarket Radio Wiring Harness with OEM Plug and Amplifier Bypass

66 reviews|Item # mpn1520274
Vehicle Specific
  • We need more information
Select Vehicle
Confirm Fitment
Authorized Dealer
$87.99 + Free Shipping
In Stock (8) - Ships within 24 hrs
See similar products
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

Ford

Includes

  • One 8-pin power plug
  • One 20-pin tuner plug
  • Includes 17' of 16 Gauge wire
  • 17' antenna extension cable

Features

  • Mates the aftermarket stereo with car wiring harness
  • Allow seamless integration of custom stereo with vehicle
  • Secure connection to existing connectors avoids splicing
  • Pin-to-pin compatibility
  • Color-coded wires
  • Harness is plugged in at the factory tuner and the wires are ran to the location of the aftermarket radio
  • Bypasses the tuner in the JBL System
  • For vehicles with no antenna connection at the head unit

Product Details

Aftermarket Radio Wiring Harness (70-5601) by Metra®, with OEM Plug and Amplifier Bypass. For aftermarket stereo. Metra preassembled wiring harnesses can make your car stereo installation seamless, or at least a lot simpler. With precrimped ends and prepopulated connectors, your wiring task will be highly simplified. These harness connectors will mate with your components exactly like the OEM connectors.

Connections:

  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange - Dash Light Dimmer/Illumination
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)

Installing a custom stereo into a modern car can be a nightmare. Make your life easier by using a custom prewired harness from Metra. With preassembled connectors that mate with OEM connectors on the vehicle or your aftermarket electronics, making proper pinout is a breeze. Minimize hand crimps and splicing, especially in the cramped spaces inside the instrument panel or under the dash. Color-coded wires are easy to trace, making for fewer mistakes.

Metra® - CatalogsMetra Authorized Dealer
Brand:
Metra
Part Number:
70-5601
UPC:
086429083602

Reviews

(66)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
/5
1-10 of 66 Reviews
1 of 5
Amp Bypass 70-5513
This bypass harness does not fit my 2014 Mustang amp as advertised.
Posted by Customer / August 14, 20222014 Ford Mustang
5 of 5
Perfect Fit
Worked perfect to connect my Pioneer headunit.
Posted by CHRISTOPHER (Long Beach, CA) / August 24, 20202016 Hyundai Accent
3 of 5
Good but Upset
It did fit so I am happy with that, but the fact that before I ordered it, it didn't have some type of warning saying that I'd have to run a wire from my fuse box to my radio and there's not even enough wire for me to run it from my fuse box to my radio.
Posted by Tessa (Merrill, WI) / August 13, 20202007 Chrysler Sebring
4 of 5
2001 Ford Ranger Radio Harness
The product connected perfectly with my OEM plug and was super easy to install.
Metra® 70-1771 - Aftermarket Radio Wiring Harness with OEM Plug
Posted by Colby (Huntsville, ON) / January 02, 20202001 Ford Ranger
5 of 5
Metra® - Aftermarket Radio Wiring Harnes
Well fitting plug, secured it with solder sleeves, to stereo kit. Make a version where you can crimp your own wires and pins.
Posted by Stephen (Clearwater, FL) / December 08, 20192009 Dodge Ram
3 of 5
Works Fine for an Explorer 2002
Poorly explained how to connect considering you have two plugs from the radio. Needed to get someone to explain.
Metra® 70-1771 - Aftermarket Radio Wiring Harness with OEM Plug
Posted by Jorge (Hollywood, FL) / November 13, 20192002 Ford Explorer
3 of 5
Pig Tail
Went well, was expecting a plug to plug harness adapter.
Posted by Michael (Pinehurst, TX) / November 08, 20192012 Nissan Xterra
5 of 5
Metra
Easy to install and works like a charm.
Metra® 70-1761 - Aftermarket Radio Wiring Harness with OEM Plug
Posted by Eric (Sand Springs, OK) / March 30, 20192015 Subaru Impreza
5 of 5
Harness
Had to research to find where blue wires go.
Metra® 70-5521 - Aftermarket Radio Wiring Harness with OEM Plug and Amplifier Integration
Posted by Marty (Durham, NC) / March 29, 20192008 Ford Taurus
5 of 5
Very Dependable Site and Brand.
The product was just right and was easy to install. I will definitely order from Metra in the future.
Metra® 70-7304 - Aftermarket Radio Wiring Harness with OEM Plug
Posted by Petro (Philadelphia, PA) / May 23, 20182013 Hyundai Elantra
