Raybestos® BNDL-1269-31022734 - R-Line™ Plain Front and Rear Brake Kit with Ceramic Pads

0 reviews|Item # mpn5241987995
Vehicle Specific
    Select Vehicle
    Replaces Original (OE) Part #:05080871AA, 05080871AB, 440607S025, 44060ZC025, 44060ZC026, D40609FE0A, 402061W600, 402066W500, 410607S025, 410607S026, 410607S027, 41060ZC025, 41060ZC027, 432069CE0A, 43206EA000, 5080871AA, 5080871AB, 41060ZC026, 40206VE800, 40206VE600, 43206EB300
    Authorized Dealer
    $217.14
    In Stock - Ships in 24 to 48 hrs
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Nissan

    Specifications

    Rotor Height
    Front: 37.973mm (1.495")
    Outside Diameter
    Front: 300mm (11.81"), Rear: 307.594mm (12.11'')
    Lug Quantity
    Front: 6, Rear: 6
    Pads Material
    Ceramic
    Minimum Thickness
    Front: 26.01mm (1.024"), Rear: 16.002mm (0.63'')
    Nominal Thickness
    Front: 28.067mm (1.105"), Rear: 18.034mm (0.71'')
    Rotor Construction
    Front: 1-Piece, Rear: 1-Piece
    Rotor Design
    Front: Rotors Only, Rear: Rotors Only
    Rotor Material
    Cast Iron
    Dust Rating
    Front: Low, Rear: Low
    Rotor Type
    Vented
    Rotor Style
    Front: Plain, Rear: Plain
    Pad Inner Width
    Front: 53.34mm (2.1"), Rear: 52.07mm (2.05")
    Pad Outer Width
    Front: 53.34mm (2.1"), Rear: 52.07mm (2.05")
    ABS Sensor Ring
    Front: Not Included
    Center Hole Diameter
    Front: 100.08mm (3.94")
    FMSI
    Front: D1015, Rear: D1041-7945
    Hardware Option
    Front: Included, Rear: Included
    Pad Inner Thickness
    Front: 17.907mm (0.705"), Rear: 17.018mm (0.67")
    Pad Outer Thickness
    Front: 17.907mm (0.705"), Rear: 17.018mm (0.67")
    Series
    R-Line™
    Shims Option
    Front: Included, Rear: Included
    Wear Sensor Option
    Front: Not Included, Rear: Not Included
    Pad Inner Length
    Front: 176.022mm (6.93"), Rear: 133.68mm (5.263")
    Pad Outer Length
    Front: 176.022mm (6.93"), Rear: 133.68mm (5.263")
    Intended for Street Use
    Front: Yes, Rear: Yes
    For Use with Stock Calipers
    Front: Yes, Rear: Yes

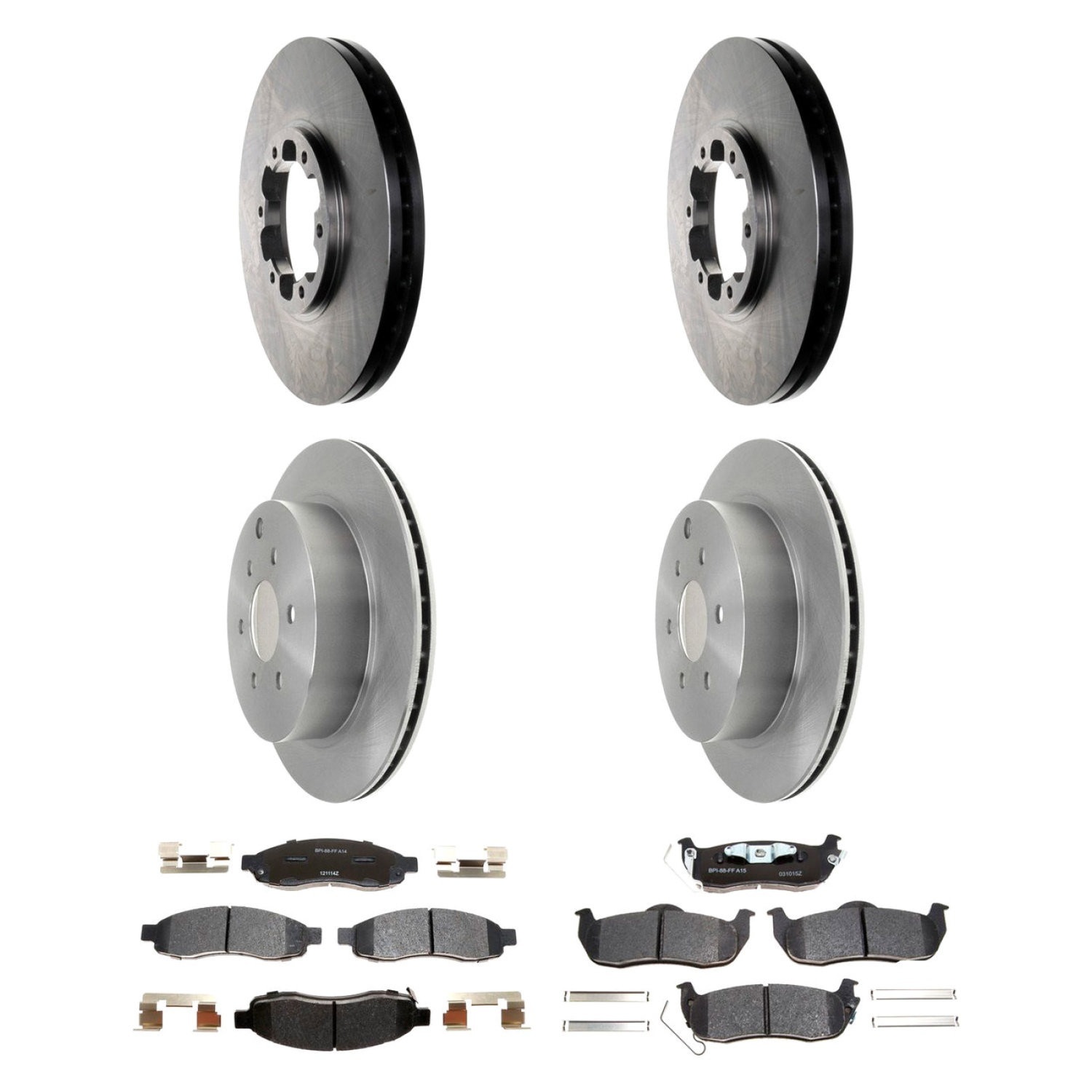

    Includes

    Product MPN Brand QTY
    R-Line™ Plain Vented Front Brake Rotor 96720R Raybestos 2
    R-Line™ Plain Vented Rear Brake Rotor 980462R Raybestos 2
    R-Line™ Ceramic Front Disc Brake Pads MGD1015CH Raybestos 1
    R-Line™ Ceramic Rear Disc Brake Pads MGD1041CH Raybestos 1

    Features

    • Made of high durable material
    • Made with new tools for a precise fit
    • Manufactured to meet or exceed strict quality requirements
    • Easy to install

    Product Details

    R-Line™ Plain Front and Rear Brake Kit with Ceramic Pads (BNDL-1269-31022734) by Raybestos®. Upgrade your braking system with Raybestos® R-Line Rotors paired with ceramic brake pads. The rotors are precision-engineered for consistent thickness and smooth operation, reducing noise, vibration, and harshness. Ceramic pads provide quiet, responsive braking with minimal dust, while multi-layer steel shims enhance noise damping. This combination ensures reliable, clean, and long-lasting performance for everyday driving.

    Installation

    Brand:
    Part Number:
    BNDL-1269-31022734
    Alternate MPN:
    BNDL126931022734, MGD1041CH, MGD1015CH, 96720R, 980462R
    OE Numbers:
    05080871AA, 05080871AB, 440607S025, 44060ZC025, 44060ZC026, D40609FE0A, 402061W600, 402066W500, 410607S025, 410607S026, 410607S027, 41060ZC025, 41060ZC027, 432069CE0A, 43206EA000, 5080871AA, 5080871AB, 41060ZC026, 40206VE800, 40206VE600, 43206EB300
