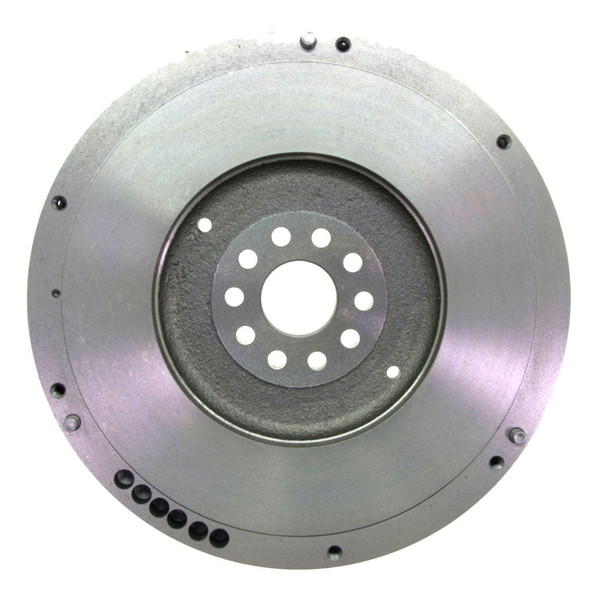

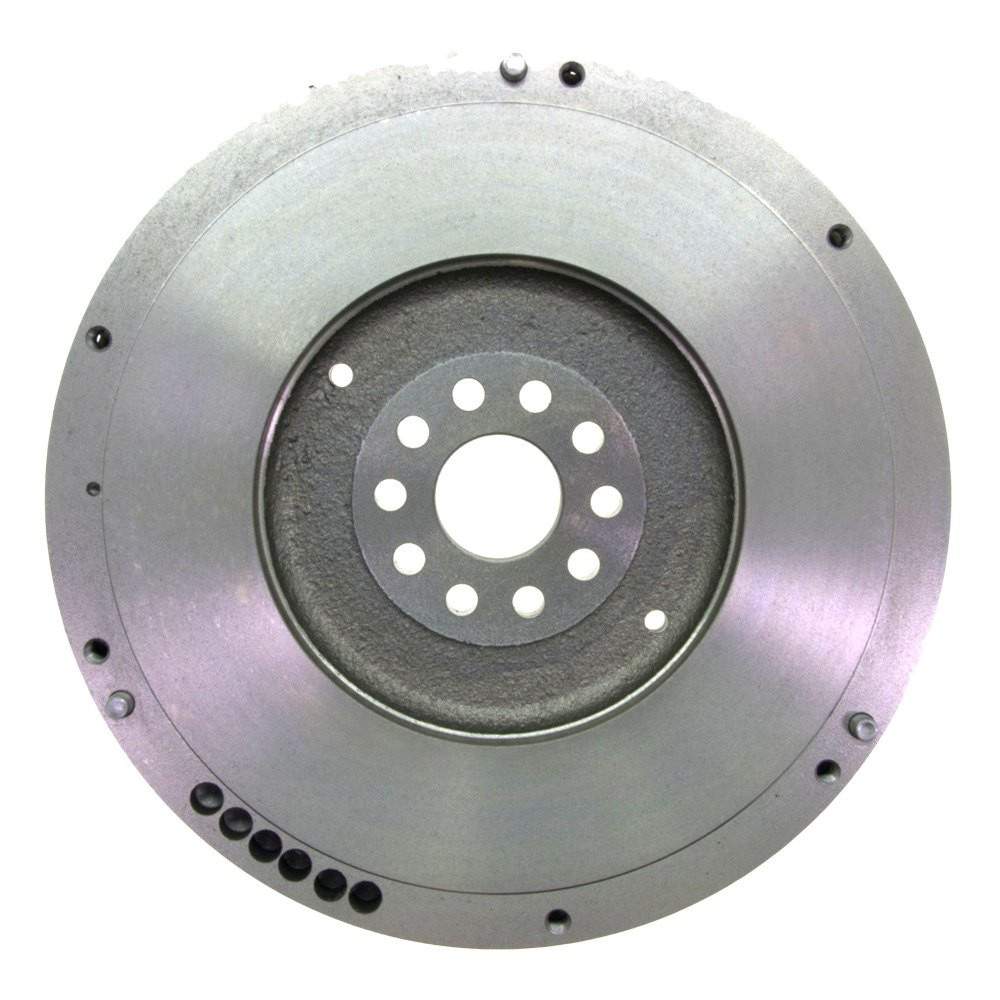

Name: Sachs® NFW9131 - Single Mass Clutch Flywheel
Brand: Sachs
SKU: mpn4629088399
Price: 113.99 USD
Availability: InStock
Rating: 2.5 (2 reviews)

Vehicle Fitment

Toyota

Specifications

Cover Pressure Plate Mounting Bolt Circle Diameter	8 mm / 8 mm
Cover Pressure Plate Mounting Hole Diameter	8 mm
Cover Pressure Plate Mounting Hole To Flywheel Quantity	10
Dowel Pin Diameter Cover To Flywheel	7.9 mm
Dowel Pin Quantity Cover To Flywheel	3
Friction Surface Configuration	Flat
Grade Type	Standard Replacement
Material	Cast iron
Mounting Hole Diameter	10.7 mm
Mounting Hole Quantity	10
Ring Gear Outside Diameter	294.9 mm
Thickness At Teeth	1.5 mm
Tooth Quantity	115
Weight	24.306 kg
Friction Surface Distance To Cover	38.5 mm

Features

Manufactured on same production line as original equipment clutch components
Meets or exceeds OEM standards
Noise and Vibration Reduction technology for a quieter, smoother ride
Optimal pedal feel

Product Details

Single Mass Clutch Flywheel (NFW9131) by Sachs®All flywheels are manufactured to meet or exceed OEM standards. Sachs offers a full range of application coverage for the most popular domestics and import vehicles. Look-up is made easy with NFW (New Flywheel) and DMF (Dual-Mass Flywheel) prefix.

Installation

Sachs® - Installations Sachs® - Features Sachs® - Warranty Sachs Authorized Dealer FAQ Product lines About us

Brand:

Sachs

Part Number:

NFW9131

UPC:

708609495011

Warranty

SACHS warrants its clutch products to be free from defects in materials and workmanship under normal use and service as hereinafter provided, for twelve months after installation in a vehicle. SACHS’ obligation under this warranty is limited to providing, at no charge, a replacement for any part of such clutch product that fails within the terms of this warranty. SACHS will not be responsible for the cost of labor related to the installation of the replacement part. In order to obtain warranty service, the entire clutch assembly, including, the clutch cover assembly, the clutch driven disc, and the releaser along with proof of flywheel resurfacing or flywheel replacement, must be returned to an authorized SACHS distributor, with proof of purchase, work order, full particulars as to the type of use, application, and length of service of the failed part. All returns must include proof that the flywheel was either replaced or resurfaced. This warranty does not cover failure or malfunctions resulting from use for high performance or racing purposes, accidents, improper application or installation, modification, alteration, improper servicing, tampering, normal wear and tear or abuse. Any implied warranties, including warranties of merchantability and fitness for a particular purpose shall be limited in duration to the period of the time set forth above. SACHS shall not be responsible for incidental or consequential damages and its liability shall be limited to the amount paid for the product. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This is the only express warranty applicable to SACHS clutch products; SACHS neither assumes nor authorizes anyone to assume for it any other express warranty.

SACHS Clutch Warranty Minimum Requirements

In order to qualify for the SACHS 12-month warranty, the following materials must be provided to the SACHS Authorized Distributor.

Proof of purchase

All kit components: disc, release bearing, pressure plate

Proof of flywheel resurfacing or replacement with new flywheel

Application information: vehicle make/model/year, length of service and failed part information

The following are examples of what will not be covered under the SACHS limited 12-month warranty:

Discs with damaged splines

Any part worn beyond normal use

Unit showing excessive rust, dust, grease or oil

Cover with broken or bent drive straps

Discs with misaligned hubs

Discs or release bearings that were installed backwards
