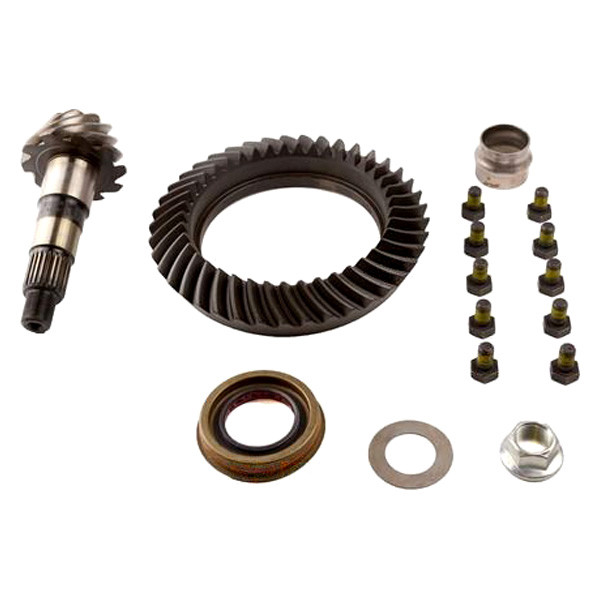

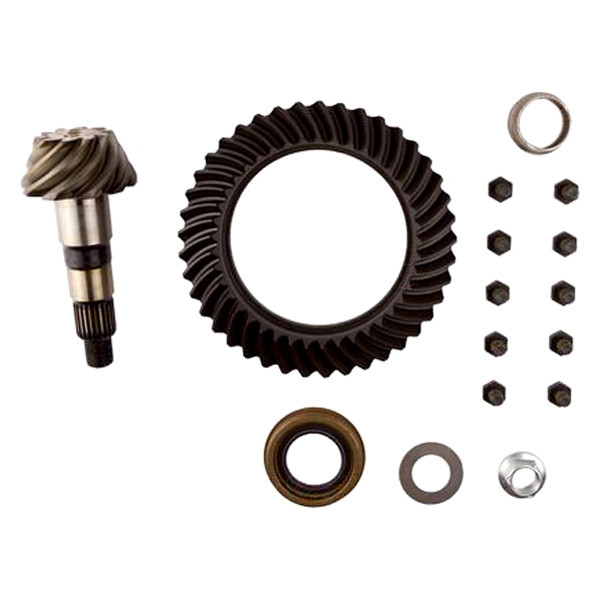

Name: Spicer® 2005024-5 - Front Ring and Pinion Gear Set
Brand: Spicer
SKU: mpn4712084465
Price: 629.46 USD
Availability: InStock

Vehicle Fitment

Jeep

Specifications

Ratio	4.10
Axle Bearings Included	No
Axle Seals Included	No
Carrier Bearings Included	No
Carrier Shims Included	No
Cover Bolts	10
Cover Gasket Included	No
Crush Sleeve Included	No
Differential Cover Included	No
Differential Oil Included	No
Friction Modifier Included	No
Head Bearing Included	No
Installation DVD Included	No
Installation Kit Included	Yes
Pinion Gear Teeth	10
Pinion Nut Included	No
Pinion Seal Included	No
Pinion Shaft Diameter	1.375"
Pinion Shims Included	No
Pinion Spline Count	24
Quantity	Sold as a kit
Ring and Pinion Ratio	4:10
Ring Gear Bolts	10
Ring Gear Bolts Included	No
Ring Gear Diameter	8.500"
Ring Gear Rotation	Standard
Ring Gear Teeth	41
Tail Bearing Included	No

Includes

Includes ring gear bolts and pinion nut.

Features

Premium heat treatment processes
Optimal tooth profiles
High-grade steel for maximum durability
Manufactured with a special grade of steel
Machined and heat-treated to precision
Engineered to ensure matched sets and mating of the gears
Superior Metallurgy: Ensures more consistent, higher quality product
Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life
Precision Heat-treating and Shot-peening: Delivers consistent quality, enhanced life by reducing residual stress and exceptional durability

Product Details

Front Ring and Pinion Gear Set (2005024-5) by Spicer®. All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

When it comes to keeping your vehicle working properly, there’s no substitute for genuine Spicer products that deliver the same quality you expect from original equipment parts. Designed to the same standards and specifications as your factory components, they are guaranteed to provide OEM fit and function. Above all, Spicer products offer quick and easy installation, so you’ll get your vehicle back on the road in no time flat. Spicer makes all its drivetrain and suspension components from the highest-grade materials using advanced technology to ensure these parts will perform reliably for many years to come. Enjoy a perfect driving experience, no matter where you go with top-grade Spicer parts!

Spicer® - Comparison Spicer® - Features Spicer® - Manual Spicer® - Catalogs Made In USA Spicer Authorized Dealer Product lines Guide Additional Information

Brand:

Spicer

Part Number:

2005024-5

UPC:

023913129484

Alternate MPN:

20050245

Warranty

Spicer Axle Warranty Statement

Subject to the conditions stated herein, Spicer warrants to purchasers of its axle and brake parts, components and assemblies ("Products") sold as original equipment ("OE") production or service parts that the Products shall be free from defects in material and workmanship and shall conform to Spicer’s published specifications under normal use and proper maintenance for the warranty periods described in the "Warranty Periods" section below. This warranty extends to Spicer OE production and service parts customers and their retail customers, and is transferable by the original retail purchaser to one subsequent owner of the vehicle in which the Product was installed as original equipment.

Product parts and components manufactured by others (such as, wheel seals, slack adjusters, and tie rods) are warranted solely by their manufacturers and not by Spicer.

Warranty Exclusions

Spicer’s warranty does not cover normal wear and tear or extend to any Product that has been (a) used in any application contrary to Spicer’s written recommendations; (b) improperly installed or maintained; (c) altered or modified; (d) damaged by casualty or due to accident, negligence, abuse, or misuse; (e) subjected to abnormal operating conditions; or (f) used with any lubricant not approved by Spicer. Noise alone is not warrantable under Spicer warranty. The noise exclusion does not apply if there is an actual failed component.

Warranty Periods

Warranty coverage for Products furnished for OEM production commences on the vehicle in-service date. Warranty coverage for Products furnished as OE service parts commences on the date of retail sale.

The product warranty periods (for replacement parts outside of the original warranty period) are as follows, commencing on the date of retail sale:

(a) New carrier exchange units - 24 months / unlimited mileage
(b) All other products - 12 months / unlimited mileage

If a non-warrantable failure occurs within the standard / extended warranty coverage period, and the customer purchases a new carrier exchange to complete the repair, warranty coverage shall be two years, unlimited mileage, from the date of the new carrier purchase.

If a non-warrantable failure occurs within the standard / extended warranty coverage period, and the customer purchases original replacement parts to complete the repair, warranty coverage shall be one year from date of purchase and unlimited mileage on the replacement parts only. Non-warrantable failures due to abuse or neglect (i.e. overloading, shock load, spin-out, failure to maintain) will void the component warranty.

Warranty Disclaimer

Spicer’s warranty herein is exclusive and given in place of (a) all other warranties for the products, express, implied or statutory, whether written or oral, including, but not limited to, any warranties of merchantability or fitness for particular purpose or implied warranties arising from performance, course of dealing or usage of trade, and (b) all other obligations, liabilities, rights, or remedies respecting the products, including, but not limited to, any rights in contract, tort, or strict liability and any right arising from Spicer’s negligence, actual or imputed.

Limitation of Liability

Spicer shall not be liable for any incidental, special, consequential and other damages, including, but not limited to, economic loss, loss of use or damage to other property.

Effective Date

This warranty shall become effective and apply to Products sold on or after January 1, 2012, and applies only to Products sold for use in the United States or Canada. This warranty may not be changed, altered or modified in any way except in writing by Spicer’s authorized representative.
