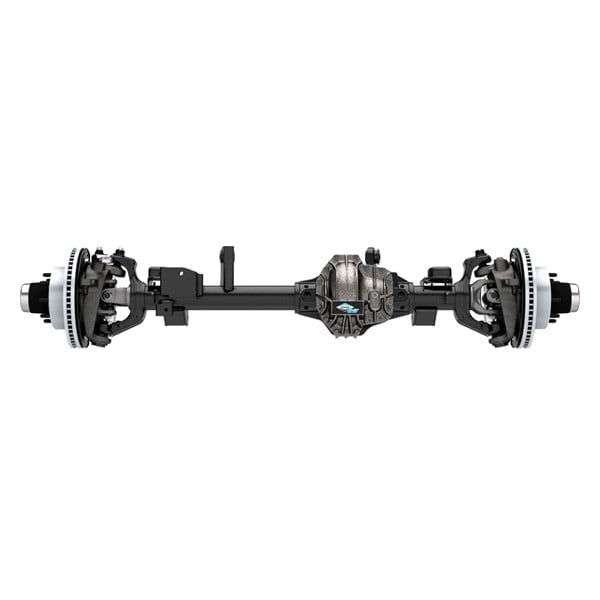

Name: Spicer® 10005778 - Ultimate Dana 60™ Crate Axle Assembly
Brand: Spicer
SKU: mpn4712017541
Price: 9499.99 USD
Availability: OutOfStock

Vehicle Fitment

Chevy

Dodge

Ford

GMC

Isuzu

Jeep

Nissan

Toyota

Specifications

Locker Type	Eaton E-Locker
Ratio	4.88
Bolt Pattern	8 x 6.5
Outer Axle Spline Count	35
Inner Axle Shaft Spline Count	35
End Yoke Style	Half Round
Hub Locks	Warn Premium
Axle Shaft U Joint Series	SPL 70
Drive Shaft U Joint Series	1350
Brakes Included	With Brakes
Mounting Bracket Included	With Mounting Bracket
Material	Chromoly

Features

Massive Spicer SPL-70 u-joints - exclusive to Dana
Spicer 35 spline SAE-4340 nickel chromoly steel axle shafts
Warn 35 spline hub locks
Dead spindle design
High-strength, heavy gauge brackets
Heavy-duty 8 x 6.5" wheel bolt pattern
Nodular iron diff cover with protective ribbing
Upper and lower control arms in same location as OE
Genuine Made in the USA Spicer 10" (256 mm) ring and pinion gear
Spicer 1350 Strap-style/Half-round end yoke
Axle tubes: 3.5" tube diameter .370" wall thickness
Upgraded heavy-duty brakes with plug-and-play ABS system

Product Details

Ultimate Dana 60™ Crate Axle Assembly by Spicer®. The Ultimate Dana 60™ front axle features massive Spicer SPL™ 70 universal joints, delivering optimal performance for lifted vehicles with larger tires. You not only get a higher torque load, but with new “rock solid” seals you get peak protection from environmental contaminants. In addition, Spicer 35 spline SAE-4340 nickel chromoly steel axle shafts help meet the rigors of off-road, providing maximum strength and durability for vehicles with larger tires. And that’s just the beginning.

Installation

Spicer® - Wrangler JK Ultimate Dana 60™ Installation

Spicer® - Wrangler JL Ultimate Dana 60™ Installation

When it comes to keeping your vehicle working properly, there’s no substitute for genuine Spicer products that deliver the same quality you expect from original equipment parts. Designed to the same standards and specifications as your factory components, they are guaranteed to provide OEM fit and function. Above all, Spicer products offer quick and easy installation, so you’ll get your vehicle back on the road in no time flat. Spicer makes all its drivetrain and suspension components from the highest-grade materials using advanced technology to ensure these parts will perform reliably for many years to come. Enjoy a perfect driving experience, no matter where you go with top-grade Spicer parts!

Spicer® - Features Spicer® - Manual Spicer® - Catalogs Made In USA Spicer Authorized Dealer Product lines Guide Additional Information

Brand:

Spicer

Part Number:

10005778

UPC:

023913340162

Warranty

Spicer Axle Warranty Statement

Subject to the conditions stated herein, Spicer warrants to purchasers of its axle and brake parts, components and assemblies ("Products") sold as original equipment ("OE") production or service parts that the Products shall be free from defects in material and workmanship and shall conform to Spicer’s published specifications under normal use and proper maintenance for the warranty periods described in the "Warranty Periods" section below. This warranty extends to Spicer OE production and service parts customers and their retail customers, and is transferable by the original retail purchaser to one subsequent owner of the vehicle in which the Product was installed as original equipment.

Product parts and components manufactured by others (such as, wheel seals, slack adjusters, and tie rods) are warranted solely by their manufacturers and not by Spicer.

Warranty Exclusions

Spicer’s warranty does not cover normal wear and tear or extend to any Product that has been (a) used in any application contrary to Spicer’s written recommendations; (b) improperly installed or maintained; (c) altered or modified; (d) damaged by casualty or due to accident, negligence, abuse, or misuse; (e) subjected to abnormal operating conditions; or (f) used with any lubricant not approved by Spicer. Noise alone is not warrantable under Spicer warranty. The noise exclusion does not apply if there is an actual failed component.

Warranty Periods

Warranty coverage for Products furnished for OEM production commences on the vehicle in-service date. Warranty coverage for Products furnished as OE service parts commences on the date of retail sale.

The product warranty periods (for replacement parts outside of the original warranty period) are as follows, commencing on the date of retail sale:

(a) New carrier exchange units - 24 months / unlimited mileage
(b) All other products - 12 months / unlimited mileage

If a non-warrantable failure occurs within the standard / extended warranty coverage period, and the customer purchases a new carrier exchange to complete the repair, warranty coverage shall be two years, unlimited mileage, from the date of the new carrier purchase.

If a non-warrantable failure occurs within the standard / extended warranty coverage period, and the customer purchases original replacement parts to complete the repair, warranty coverage shall be one year from date of purchase and unlimited mileage on the replacement parts only. Non-warrantable failures due to abuse or neglect (i.e. overloading, shock load, spin-out, failure to maintain) will void the component warranty.

Warranty Disclaimer

Spicer’s warranty herein is exclusive and given in place of (a) all other warranties for the products, express, implied or statutory, whether written or oral, including, but not limited to, any warranties of merchantability or fitness for particular purpose or implied warranties arising from performance, course of dealing or usage of trade, and (b) all other obligations, liabilities, rights, or remedies respecting the products, including, but not limited to, any rights in contract, tort, or strict liability and any right arising from Spicer’s negligence, actual or imputed.

Limitation of Liability

Spicer shall not be liable for any incidental, special, consequential and other damages, including, but not limited to, economic loss, loss of use or damage to other property.

Effective Date

This warranty shall become effective and apply to Products sold on or after January 1, 2012, and applies only to Products sold for use in the United States or Canada. This warranty may not be changed, altered or modified in any way except in writing by Spicer’s authorized representative.
